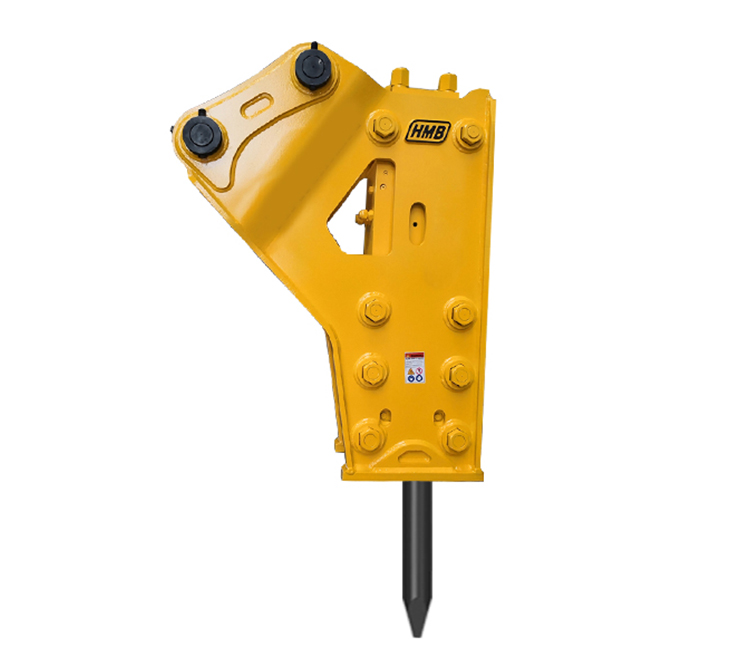

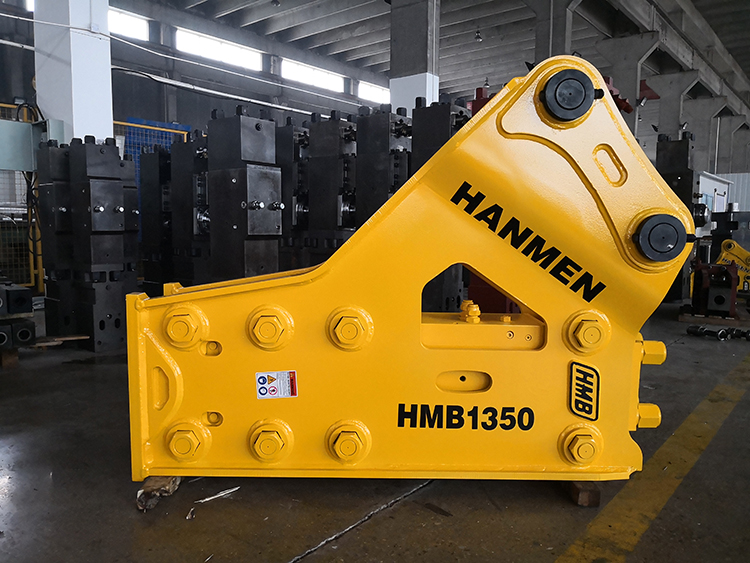

side type hydraulic breaker

hydraulic breaker

Product Classification： hydraulic breaker

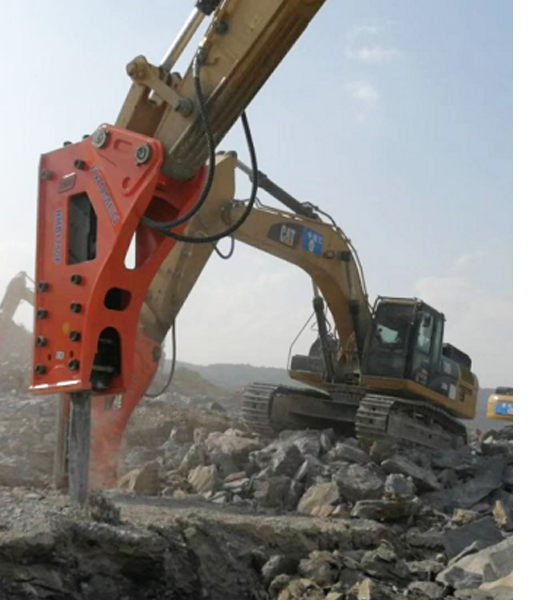

Definition： HMB side type hydraulic breaker: Versatile application including rock broken, paving the road, building demolition, etc.
Contact Us Now

Product Details

Product inquiry

HMB is a manufacturer of China’s top hydraulic breakers and various accessories for excavators.12 years of manufacturing experience,professional team, and one-stop shopping. Competitive price, fast delivery of goods, HMB has a full range of Hydraulic breaker for excavators from 0.8-60 tonne. They are suitable for all kinds of brands and models of excavators.

You can choose according to your own needs.
Please check the following specifications to choose the right hydraulic breaker model.

		HMB350	HMB400	HMB450	HMB530	HMB600	HMB680	HMB750	HMB850	HMB1000	HMB1250	HMB1350	HMB1400	HMB1500	HMB1550	HMB1650	HMB1750	HMB1800	HMB1850	HMB1900	HMB1950	HMB2000	HMB2050	HMB2150
For Excavator Weight(Ton)		0.6-1	0.8-1.2	1-2	2-5	4-6	5-7	7-9	9-12	12-17	15-18	18-25	20-30	25-30	27-36	30-40	35-45	42-50	45-52	45-58	48-60	50-60	50-70	60-90
Operating Weight(Kg)	Side Type	82	90	100	130	240	250	380	510	760	1320	1450	1700	2420	2500	2900	3750	3900	4030	4230	4876	5980	6150	6580
	Top Type	90	110	122	150	280	300	430	55	820	1380	1520	1780	2500	2600	3100	3970	4100	4180	4460	5036	6180	6300	6780
	Silenced Type	98	130	150	190	320	340	480	580	950	1450	1650	1850	2600	2750	3230	4150	4200	4300	4760	5380	6380	6550	6998
	Backhoe type			110	130	280	300	400
	Skid steer loader type			235	283	308	336	398
Working Flow(L/Min)		10-30	15-30	20-40	25-45	30-60	36-60	50-90	60-100	80-120	90-150	130-170	150-190	170-220	170-220	200-250	250-280	250-280	250-280	250-280	250-280	250-300	260-320	260-340
Working Pressure(Bar)		80-110	90-120	90-120	90-120	100-130	110-140	120-170	130-170	150-170	150-170	160-180	165-185	180-230	180-230	200-250	250-300	250-300	250-300	280-310	280-310	280-320	280-340	380-340
Impact Rate(Bpm)		500-1200	500-1000	500-1000	500-1000	500-900	500-900	400-800	400-800	400-700	400-650	400-650	400-500	300-450	300-400	250-400	250-350	230-320	230-320	230-320	210-300	210-300	180-260	150-250
Hose Diameter(Inch)		1/2	1/2	1/2	1/2	1/2	1/2	3/4	3/4	3/4	1	1	1	1	1	5/4	5/4	5/4	5/4	5/4	5/4	5/4	1.5-2	1.5-2
Tool Diameter(mm)		35	40	45	53	60	68	75	85	100	125	135	140	150	155	165	175	180	185	190	195	200	205	215

Features
Main Features of HMB Hydraulic breaker:
Yantai Jiwei has always insisted on using high-quality materials. Only high-quality materials and processes can produce a good hydraulic breaker, which can fundamentally help customers save maintenance costs and improve work efficiency.
1.Korea made cylinder;
2.Japan made NOK oil seal;
3.Full-closed housing to protect the main body;
4.Strong impact
5.Longer lifetime of usage;

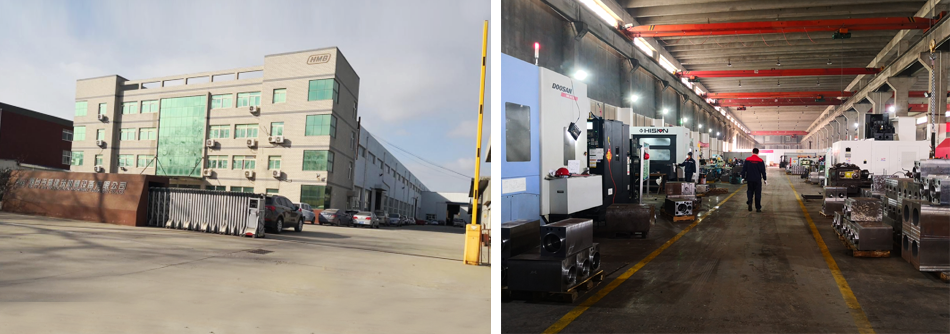

company information

With first-class materials, first-class technology, first-class team, and one-stop service, Jiwei has managed to save costs for customers while maintaining high quality. HMB breakers are extremely powerful and powerful, and can crush objects instantly. When buying hydraulic breakers, HMB is the first choice. Yantai Jiwei carefully prepares each breaker and produces it in strict accordance with international standards to achieve a good reputation. Facts have proved that Jiwei is the preferred supplier.

products video

Why choose us ？
1. China's top hydraulic hammer manufacturer, we have our own factory and 12 years of production experience.
2. we have 5 technical experts and more than 60 skilled workers.
3. There is a dedicated QC team, the quality follows strict international standards, and has passed CE certification.
4. The product has a one-year warranty, provides offline and online guidance services, and a professional after-sales team.
5. Support OEM/customized service.
6 The price is more advantageous than the products in the same industry,Strong power and competitive price.
7.long using life and strong impact power.Korean technology.
Service&warrantly
1. One-stop service, producing all kinds of hydraulic hammers and excavator accessories, such as quick hooks, grabs, compactors, augers, rippers, etc...
2. Provide free customized services. We have a professional design team to meet any of your requirements. At the same time, we can provide intimate pre-sales and after-sales services.
3. Sign a confidentiality agreement regarding product information.
4. The product will be tested before leaving the factory.
5. Fast delivery service
6. We provide free replacement and maintenance services within one year.
